10MW Pv Module Line|Radiant Pv Solar

Description:10MW Pv Module Line
Annual capacity:10MW/year
Capacity: 3pcs of 550W/hour with 182mm
Peak Power: 150Kw Rated Power:80Kw
Compressed air:0.6-0.8Mpa

EMAIL

TURNKEY PRODUCTION LINES FOR SOLAR PANELS

Radiant Pv Solar provides complete solar turnkey lines for the manufacturing of photovoltaic modules. We customizes Solar Panel Production Line in order to give the best solutions according to customer requirement.

With development of new solar technology,solar cell dimension is bigger and more efficient,that makes bigger solar panel.

The 10MW designed from Radiant Pv Solar is good start and minimum annual capacity to make 400-650W solar panel by 166-210mm solar cells.

It is manual line with all offline equipment and better for market with lower labour cost.

Annual capacity

10MW/Year

Production capacity

3pcs/Hour,19800pcs/year

Solar module

300-650W

Building space

500SQM

Working person

7person/shift

Power consumption

80Kw/Hour

Water consumption

No need

Reference Lay out drawing for 10MW Solar Pv Module Line

10MW  lay out drawing.jpg

Solar cell tester*1set


Irradiance range:70mW/cm2~120mW/cm2;

Uniformity of irradiation:≤±3%;

Irradiation instability:≤±1%;

Effective testing dimension:220mm×220mm(5-12BB) ;

Inconsistency of testing: ±1%;

Error of testing result: ±2%;

Fiber scribing machine*1set


Laser output: 20KHz~100KHz continuous adjustable;

Laser power: 30w(400mm/s);

Cutting scribing accuracy:±0.05mm;

Scribing cell size: max 210*210mm;

Worktable size:220*220mm;

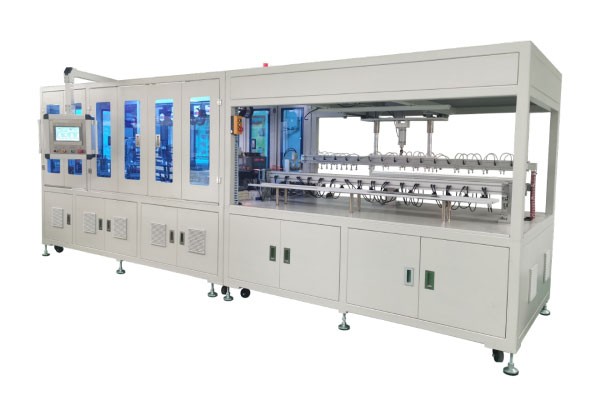

Auto solar stringer*1set

Low speed solar stringer-1.jpg

Welding Speed:Max 2 seconds/cell,Max 1800 pcs/hour;

Solar Cell Dimension:39~158*158mm,166*166mm,182*182mm,210*210mm ;

Breakage Rate:≤2‰ (A Grade Solar Cell);

Welding Strings Qty:Single String Welding;

Welding Method:Infrared Heating Welding;

Welding Power:Normal Temperature-400℃ (Adjustable);

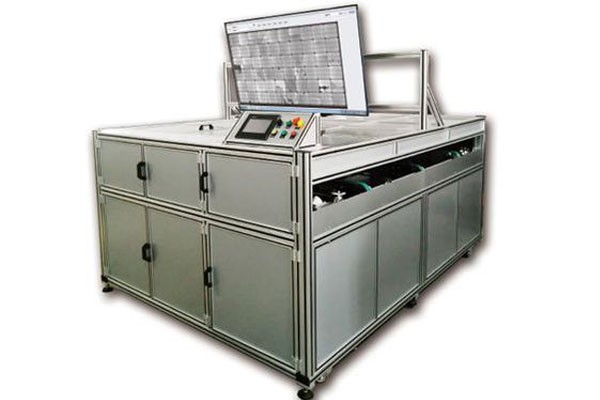

EL tester*1set


Two cameras:Sony+Nikon;

Pixel:6016X4000(2400W);

Image acquisition time:1—60sadjustable;

Camera type:CCD cooling(inside+outside cooling);

It can be detected that the width of cracks is less than 0.5MM;

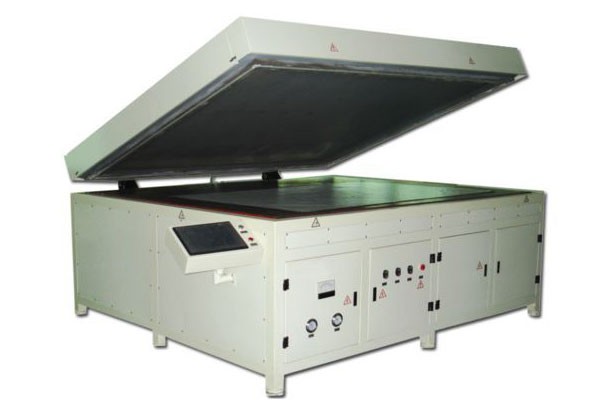

Semi auto Solar Panel Laminator YDB-1525/1526*1set

Semi-auto <a href=https://www.radiantpvsolar.com/Solar-Panel-Laminator.html target='_blank'>Solar Panel Laminator</a>-1.jpg

Laminate area:1500*2600mm;

Control mode:Automatic/ Manual;

Temperature control mode:PID Control;

Work temperature:100℃~160℃;

Temperature uniformity:±1.5℃ Multi-point temperature control;

Controllable temperature precise:≤±0.8℃(at the regulated set temperature value);

Framing machine*1set


Maximum framing size: 2384* 1303mm;

Minimum framing size: 700 *700mm;

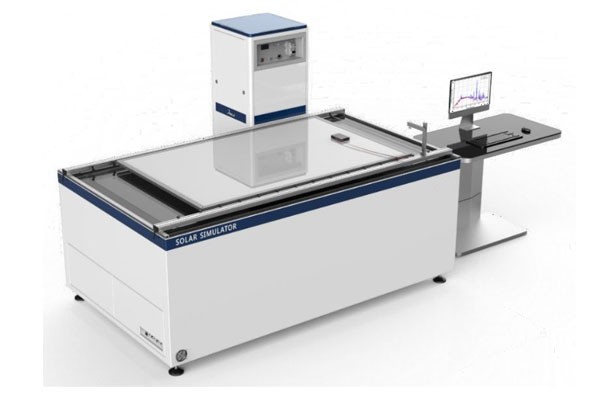

Sun simulator*1set


Irrdiance range:70mW/cm2~120mW/cm2;

Uniformity of irradiation: ≤±3%;

Irradiation instability:≤±1%;

Effective testing dimension:2400mm×1400mm;

Effective testing range:5W~650W;

Inconsistency of testing: ±1%;

Error of testing result:±2%;

https://www.youtube.com/channel/UCnKnFZY2agweQsXFc-iJ7_w

Company information


As a leading manufacturer of turnkey line solutions for PV intelligent equipment, Radiant is specializing in the R&D, design,production,sales and related services of high-tech automation complete sets of equipment.



High performance and best stability for all equipment,Free factory lay out,Machine installation,commissioning&training


Radiant always adheres to its advanced production technology, improved technological process, excellent product quality, comprehensive after-sales service to continuously provide customers with innovative, efficient and specialized solutions, and has won good reputation and wide recognition in the industry and global market.




INQUIRY
