Non-destructive Cell Cutting Machine|Radiant Pv Solar

Description:Non-destructive Solar Cell Cutting
Capacity:7200PCS/H  1/2 1/3
Cell type:156mm*156mm-220mm*220mm
Cutting cell:1/2 1/3(optional)

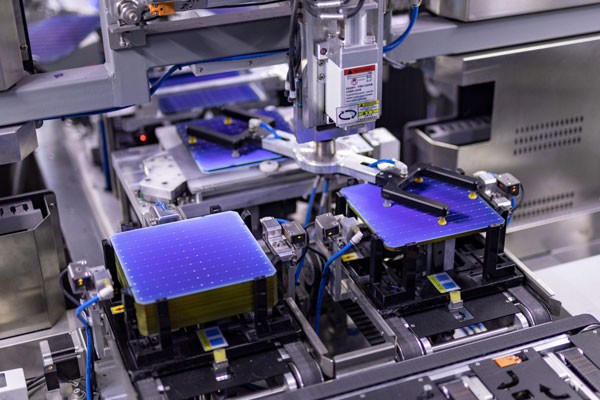

Load 150 pcs of solar cell per box and total will be 5 cell box

EMAIL

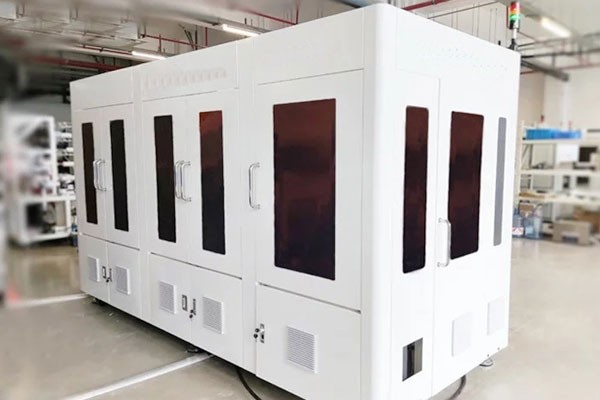

The Non-destructive Cell Cutting Machine is a fully automated equipment that can cut monocrystalline silicon cells.Advantages The scribing section is smooth,no cracks, and strong load-bearing ability. It can effectively improve the packaging yield of small-pitch, negative-pitch, large-size, and thin-film components of the current new solar module technology, and reduce costs and increase efficiency for component factories. It is the development direction of the future battery dicing machine.

Designed capacity

7200PCS/H  1/2  1/3

Breakage rate

≤0.05% (A grade cell)

Solar cell

Monocrystalline silicon

Solar cell type

P and N

Solar cell dimension

156mm*156mm-220mm*220mm

Cutting cell

1/2 1/3(optional)

Solar cell thickness

140um-200um

Cutting straightness

±0.075mm

Slot

Head or tail

Length of slow

≤1.5mm

Middle heat affected zone

No

Intermediate slit width

No

Feeding scan

Optional

MES

Support

Electrical system

PLC+IPC+Visual+Servo

Working temperature

25℃±2℃

Compressed air

0.5MPa-0.8MPa 1200L/min

Power

Peak power 18KW      Average 4KW

Weight

3000KG

Dimension

L4250mm*W2450mm*H2450mm

Machine Feature

High compatibility:156mm-220mm,operator change Jig to realize it;

Linear interactive platform dicing, higher dicing straightness,to meet the needs of large size, small spacing,and negative spacing to maximize the window;High utilization rate,single-track laser is completely independently controlled,and each track is not shared and easy to control;
