50MW Pv Module Line

Description:50MW Pv Module Line
Annual capacity:50MW
Capacity: 12pcs of 550W/Hour with 182mm
Peak Power: 150Kw Rated Power:80Kw
Compressed air:0.6-0.8Mpa

EMAIL

50MW Solar pv module line is best optional beginner with fully automated and acceptable by majority of customer.

It provides a higher throughput supported by more automatic machines and keeps most of its machines but it can do more based on 3 work shifts of 8 hours. Witha compact and flexible setup, it can fit any factory.

Designed feature for 50MW:

-compatible with whole cell&half cutting solar cell production.

-With cell laser cutting unit for half-cut cells.

-Production fully compatible with bigger solar cells:M6(166mm),M10(182mm),M12(210mm) in full, half and third cut(with different Jigs)

-Works with 9,10,11,12 bus bar and wires.

-Flexible with automatic bussing or manual bussing.

-Works with solar panel dimension up to 2400*1400mm.

-Power of single solar panel can reach 600w+.

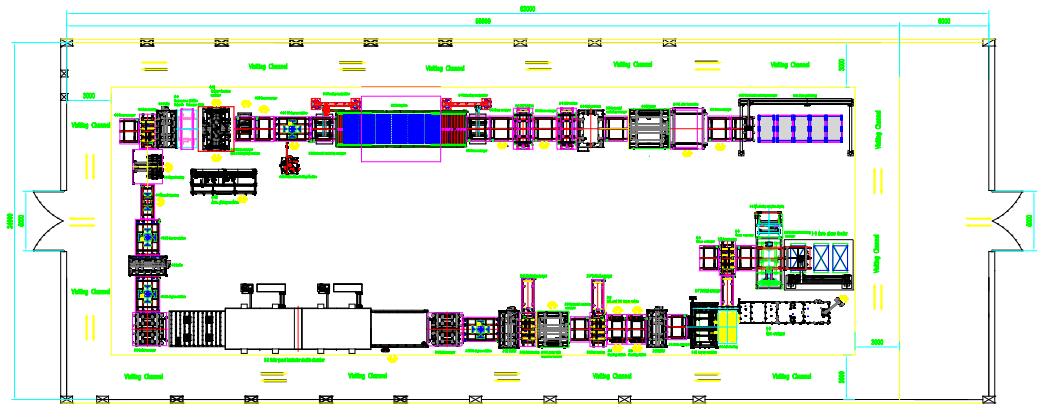

Reference lay out drawing for 50mw solar pv module line

50MW layout.jpg

Main machine list

Auto glass loader*1set                  1st Eva cutting&laying machine*1set

Auto solar stringer*set                  Auto layup machine*1set

Online EL*VI tester*1set                Auto Solar Panel Laminator*1set

Auto trimming machine*1set         Flipped tester*1set

Auto framing machine*1set           J-box gluing machine*1set

J-box potting machine*1set           Auto frame gluing machine*1set

Curving line&manipulators*1set     180°Rotation*2sets

Iv tester*1set                             Hi-pot tester*1set

EL after lamination*1set               Auto sorter*1set
