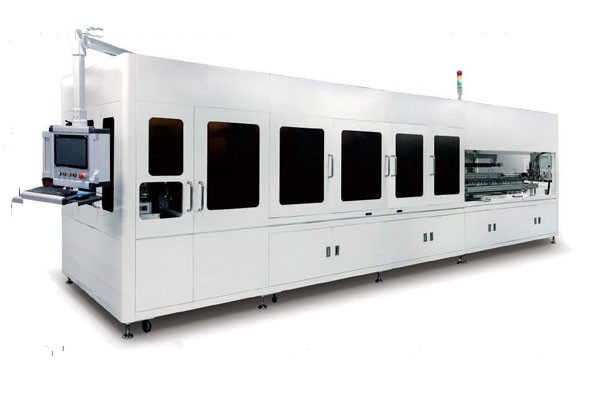

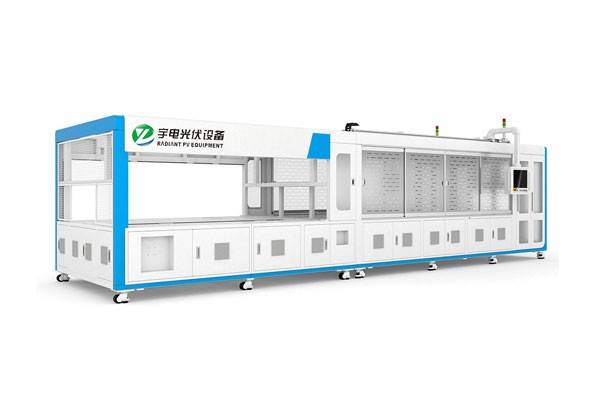

Automatic Tabber Stringer Machine|Radiant Pv Solar

Description: Automatic production equipment to solder mono or polycrystalline MBB solar cell
Product Model: AMS-L4000II
Cell Type: Under the 220 crystalline full&half cell
Busbar No.: From 5BB to 20BB
Ribbon Used: Normal flat ribbon/Round ribbon

EMAIL

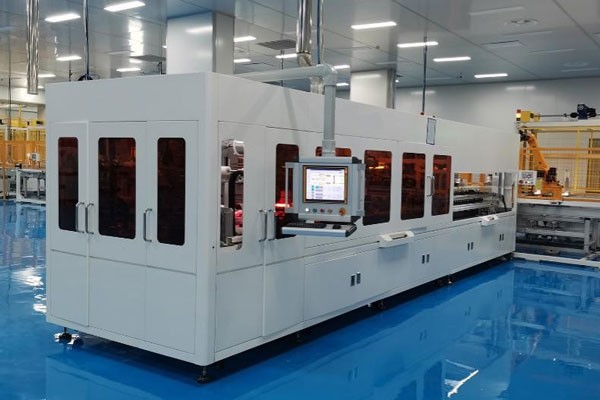

High Speed Automatic Tabber&Stringer Machine|Radiant Pv Solar

              Breakage rate

   Poly ≤0.2% Mono ≤0.3% up to cell quality based on A grade Cell

            Solar cell length

   Max.length ≤2250mm

                  Cell space

   0.5-10mm

          Cell spacing tolerance

   ≤±0.2mm

        Cell positioning accuracy

    ≤±0.06mm

             Cell angel tolerance

   ≤±0.3 degree

Cell string total length tolerance

   ±0.5mm

Cell string straightness tolerance

   ±0.5mm based on 10pcs/string NG printing cell excluded

                   Ribbon type

   Leaded or lead frfee

                 Ribbon width

   0.6-3.0mm

               Ribbon thickness

     0.18-0.32mm

                   Ribbon type

    Round ribbon,tin lead alloy,hot dip coting

                Ribbon diameter

    0.29-0.4mm,size tolerance ≤±0.01mm

                        Flux

    Normal brand,ribbon immersed


Features:

1.Flux application method: Ribbon immersed;

2.Cells are inspected by industrial camera,the defect of missing corner/broken edge/crack/90°or 180°rotation/surface matter can be inspected;

3.Mitsubishi 4-axis robot is used for soldering swing plate, which can adjust the position and swing of the cell plate;

4.Soldering by IR,the heating temperature of the bottom plate and infrared lamp tube is controllable;

5.The special IR lamp head heat preservation can ensure the sustainable production in case of pause less then 2 minutes;


Company information


As a leading manufacturer of turnkey line solutions for PV intelligent equipment, Radiant is specializing in the R&D, design,production,sales and related services of high-tech automation complete sets of equipment.



High performance and best stability for all equipment,Free factory lay out,Machine installation,commissioning&training


Radiant always adheres to its advanced production technology, improved technological process, excellent product quality, comprehensive after-sales service to continuously provide customers with innovative, efficient and specialized solutions, and has won good reputation and wide recognition in the industry and global market.
