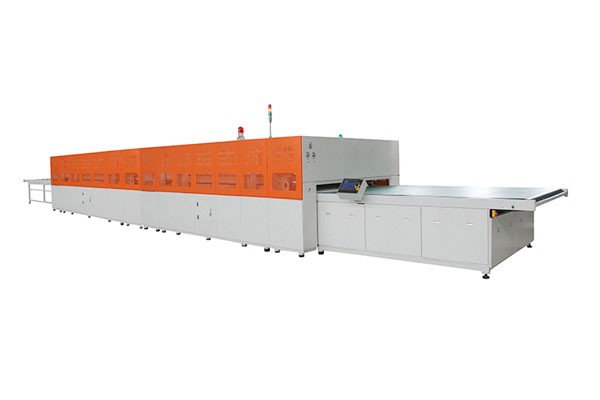

Full Auto Solar Panel Laminator YDZ-2778

Description:Full Auto Solar Panel Laminator
Lamination Size: 2700*7800mm-Double chamber
Capacity: 36pcs of 550W/Hour with 182mm
Capacity: 30pcs of 600W/Hour with 210mm
Annual Capacity:150MW/Year
Peak Power: 165Kw Rated Power:85Kw

EMAIL


                                             Full Auto Solar Panel Laminator 2700*7800mm-Double Chamber
Effective Lamination Area
2700*7800mm
Annual Capacity
150MW/Year
Uptime
99.5%
Ultimate Vacuum 20-80pa
Control Mode
Auto/Manual
Temperature Control Mode
PID Control
Max Temperature
180degree
Temperature Uniformity
±1.5Multi Point Temperature Control
Working Temperature
100-160degree
Controllable Temp-precise
≤±0.8
Compressed Air0.5-0.8Mpa
Lamination Time
About 20mins
Peak Power90Kw
Rated Power50Kw


Features:

1.Flexible working modes:

Automatic & manual normal state, it can work automatically with high efficiency and stability; In installation or other condition, it can work manually. Both modes are convenient to operate and control;

2.Humanized interface:

The control program is easy to learn and convenient to operate. Every running parameter can be set easily with high precision.

3.Special design for upper cover to preventrubber sheet wrinkle:

Extends the service life of rubber sheet by one time above. It improves lamination flatness and reduces cell panels wrinkle;

4.Multi-position control technology:

The combination of vacuum technology, pneumatic transmission technology, PID auto-tuning technology, programmable control technology, electric relay control technology realizes digital control for vacuum system, heating system and the whole process;

5.Control system: Import element & high allocation:

Uses imported Siemens PLC & Taiwan touch screen with table, reliable and high precision performance.
It meets the standards of industrial automation control;

6.Precise high vacuum indicator:

The vacuum indicator can quantizingly supervise the chamber vacuum state with anti-interference, direct and reliable display. Thus it can ensure the optimal laminating effect;

Company information


As a leading manufacturer of turnkey line solutions for PV intelligent equipment, Radiant is specializing in the R&D, design,production,sales and related services of high-tech automation complete sets of equipment.



High performance and best stability for all equipment,Free factory lay out,Machine installation,commissioning&training


Radiant always adheres to its advanced production technology, improved technological process, excellent product quality, comprehensive after-sales service to continuously provide customers with innovative, efficient and specialized solutions, and has won good reputation and wide recognition in the industry and global market.
