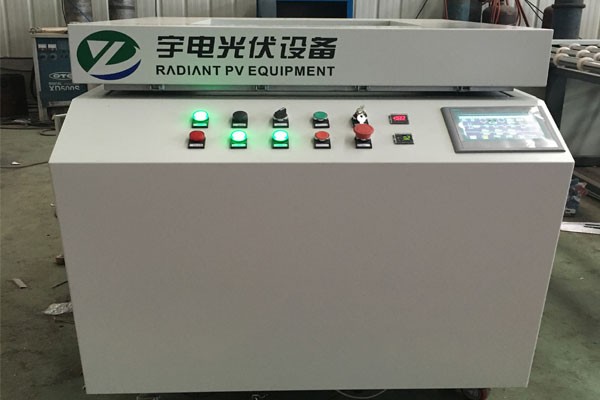

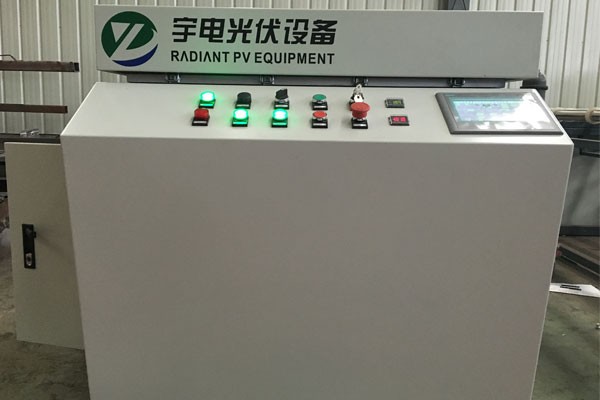

Lab Pv Module Laminator

Description:Lab Pv Module Laminator 500*500mm
Application:Solar material lamination and testing
Lamination area:500*500mm
Heating mode:electric
Power:4Kw
Compressed air:0.5-0.8Mpa

EMAIL


                                                                Solar Panel Laminator 500*500mm
Effective Lamination Area
500*500mm

Heating mode

Electrical heating system

Temperature control mode

PID Control

Temperature uniformity

±3℃ Multi-point temperature control

Maximum temperature

180℃

Work temperature

100℃160℃

Unevenness of the worktable

Unevenness≤300 μm/m²

Peak power

4Kw

Work power

2Kw

Compressed air speed

1-8L/S

Lamination Time
About 20mins
                     *****Customized service is available according to product or customer requirement********

Features:

1.Flexible working modes:

Automatic & manual normal state, it can work automatically with high efficiency and stability; In installation or other condition, it can work manually. Both modes are convenient to operate and control;

2.Humanized interface:

The control program is easy to learn and convenient to operate. Every running parameter can be set easily with high precision.

3.Special design for upper cover to preventrubber sheet wrinkle:

Extends the service life of rubber sheet by one time above. It improves lamination flatness and reduces cell panels wrinkle;

4.Multi-position control technology:

The combination of vacuum technology, pneumatic transmission technology, PID auto-tuning technology, programmable control technology, electric relay control technology realizes digital control for vacuum system, heating system and the whole process;

5.Control system: Import element & high allocation:

Uses imported Siemens PLC & Taiwan touch screen with table, reliable and high precision performance.
It meets the standards of industrial automation control;

6.Precise high vacuum indicator:

The vacuum indicator can quantizingly supervise the chamber vacuum state with anti-interference, direct and reliable display. Thus it can ensure the optimal laminating effect;

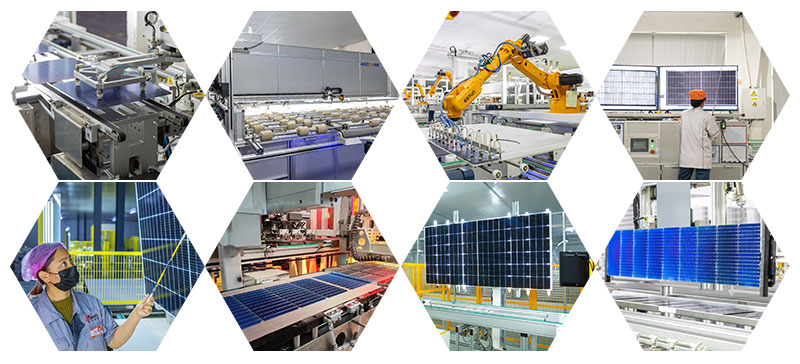

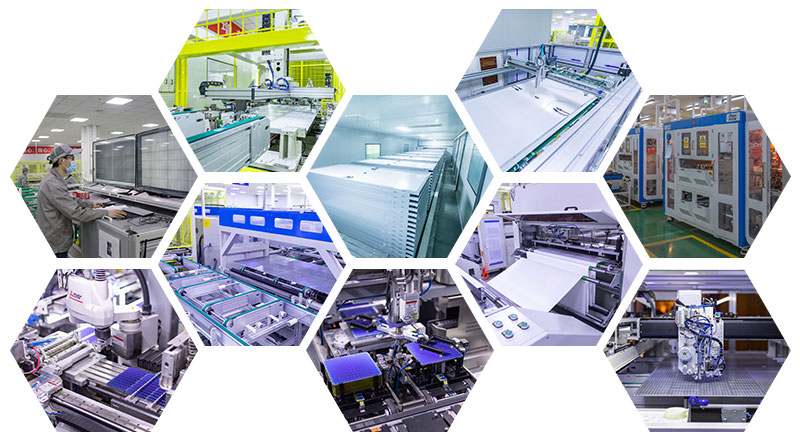

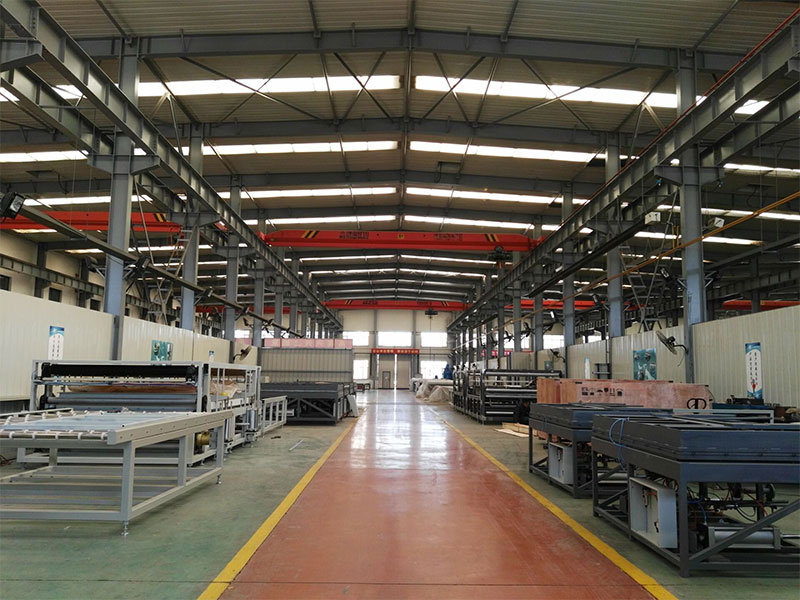

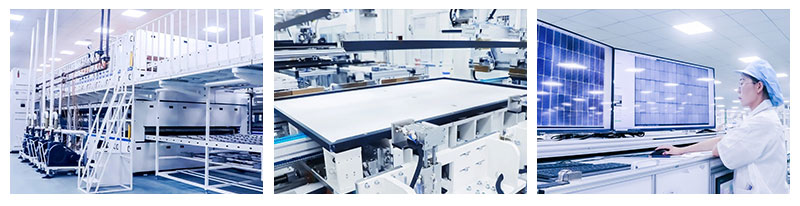

Company information


As a leading manufacturer of turnkey line solutions for PV intelligent equipment, Radiant is specializing in the R&D, design,production,sales and related services of high-tech automation complete sets of equipment.



High performance and best stability for all equipment,Free factory lay out,Machine installation,commissioning&training


Radiant always adheres to its advanced production technology, improved technological process, excellent product quality, comprehensive after-sales service to continuously provide customers with innovative, efficient and specialized solutions, and has won good reputation and wide recognition in the industry and global market.
