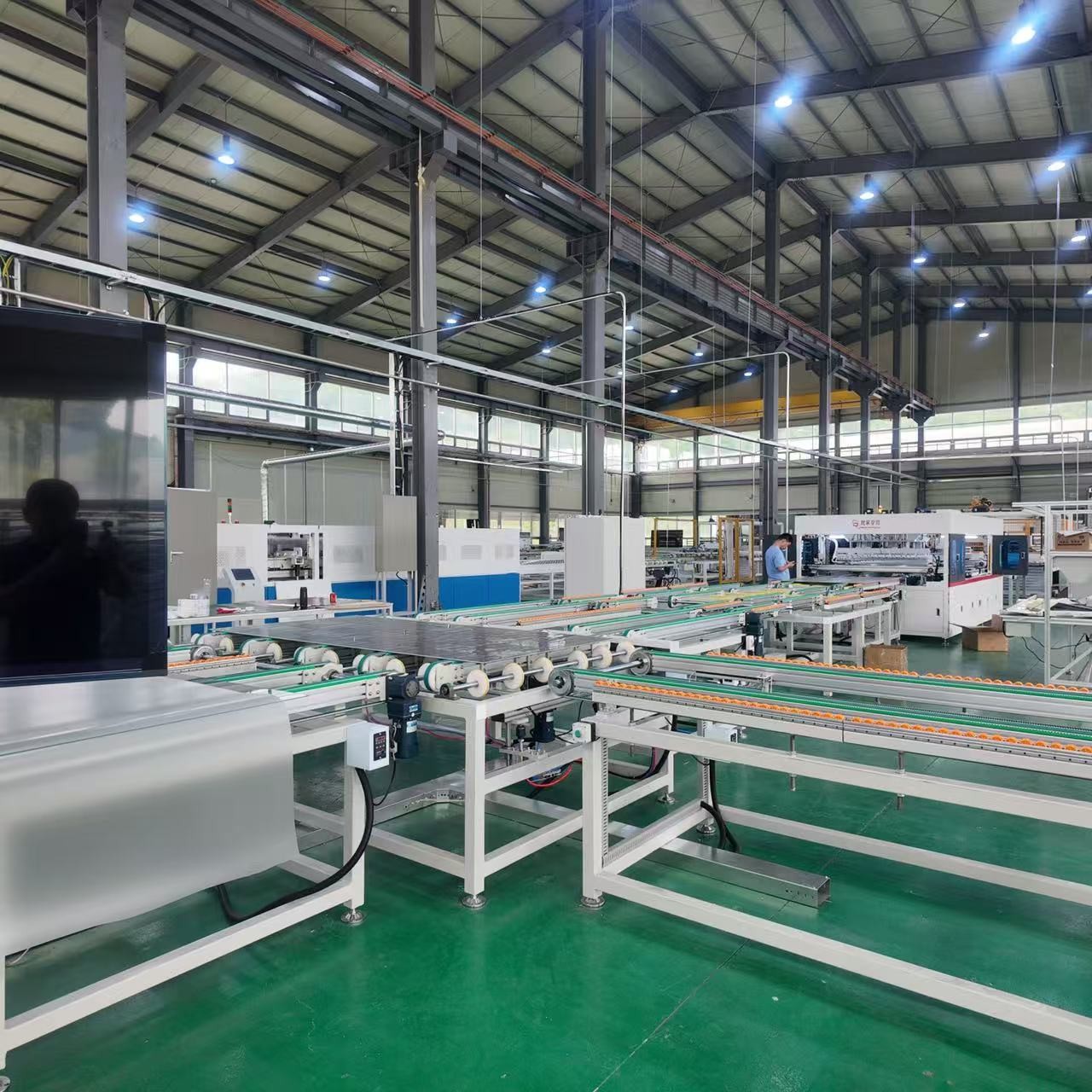

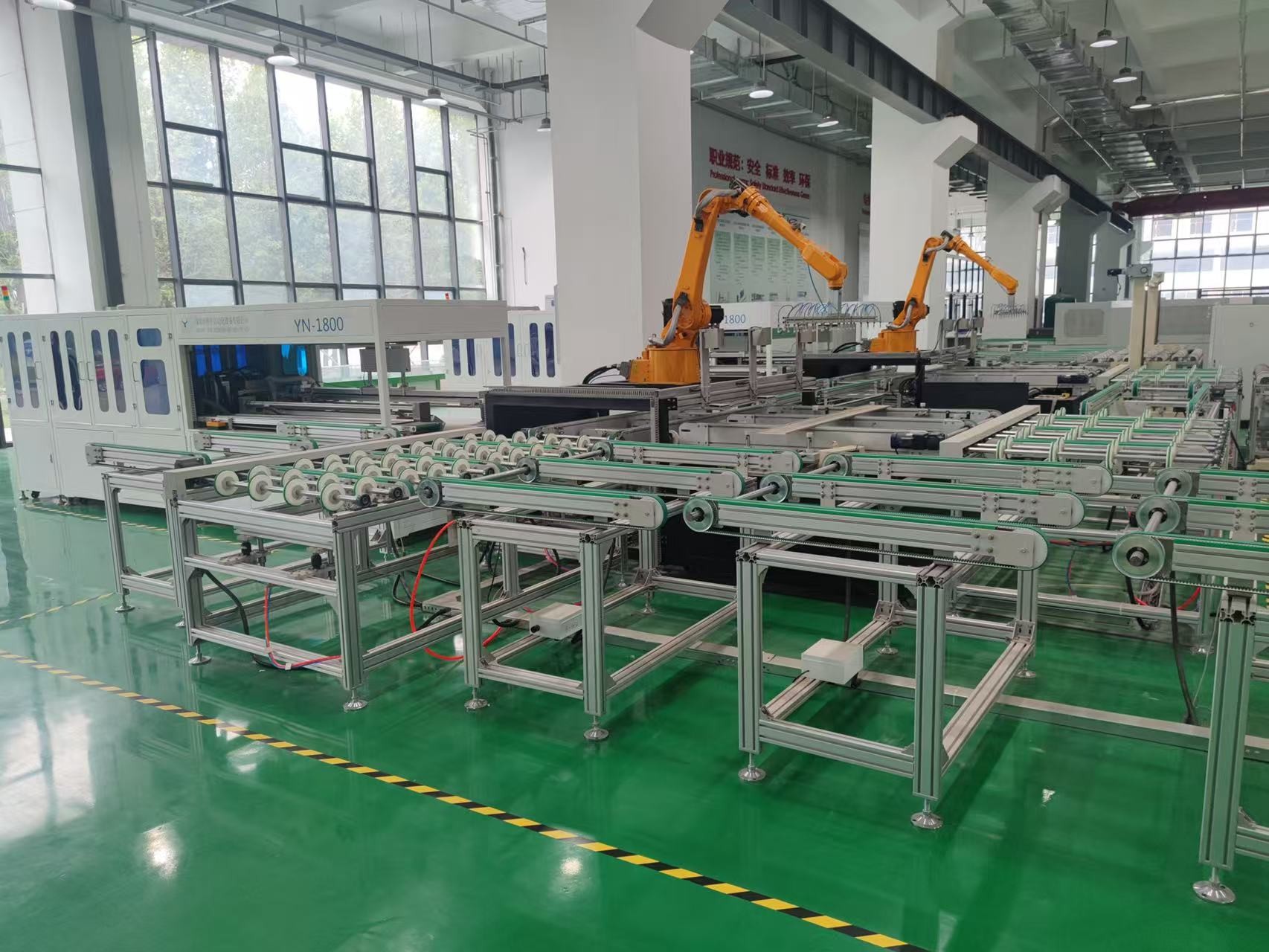

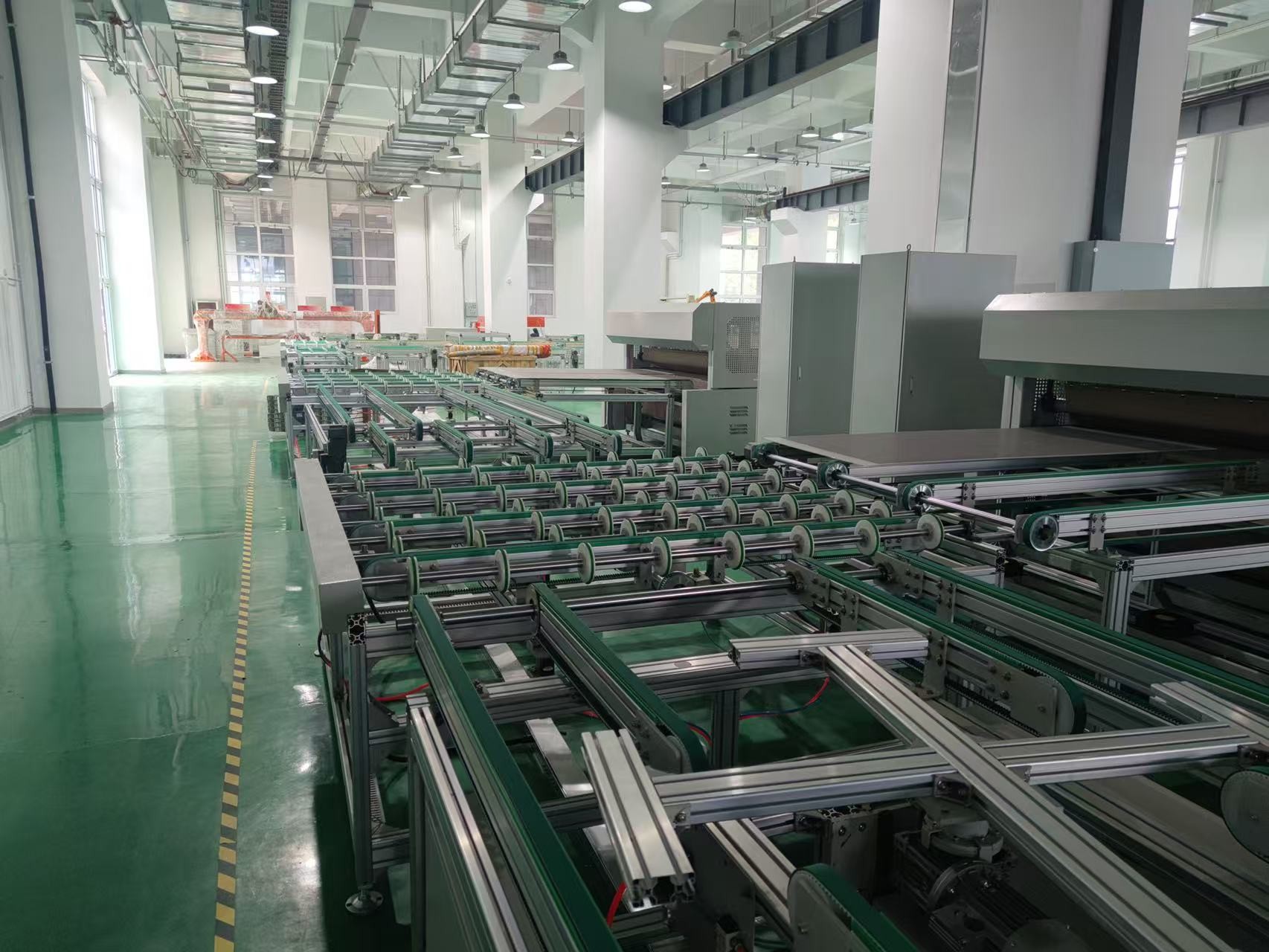

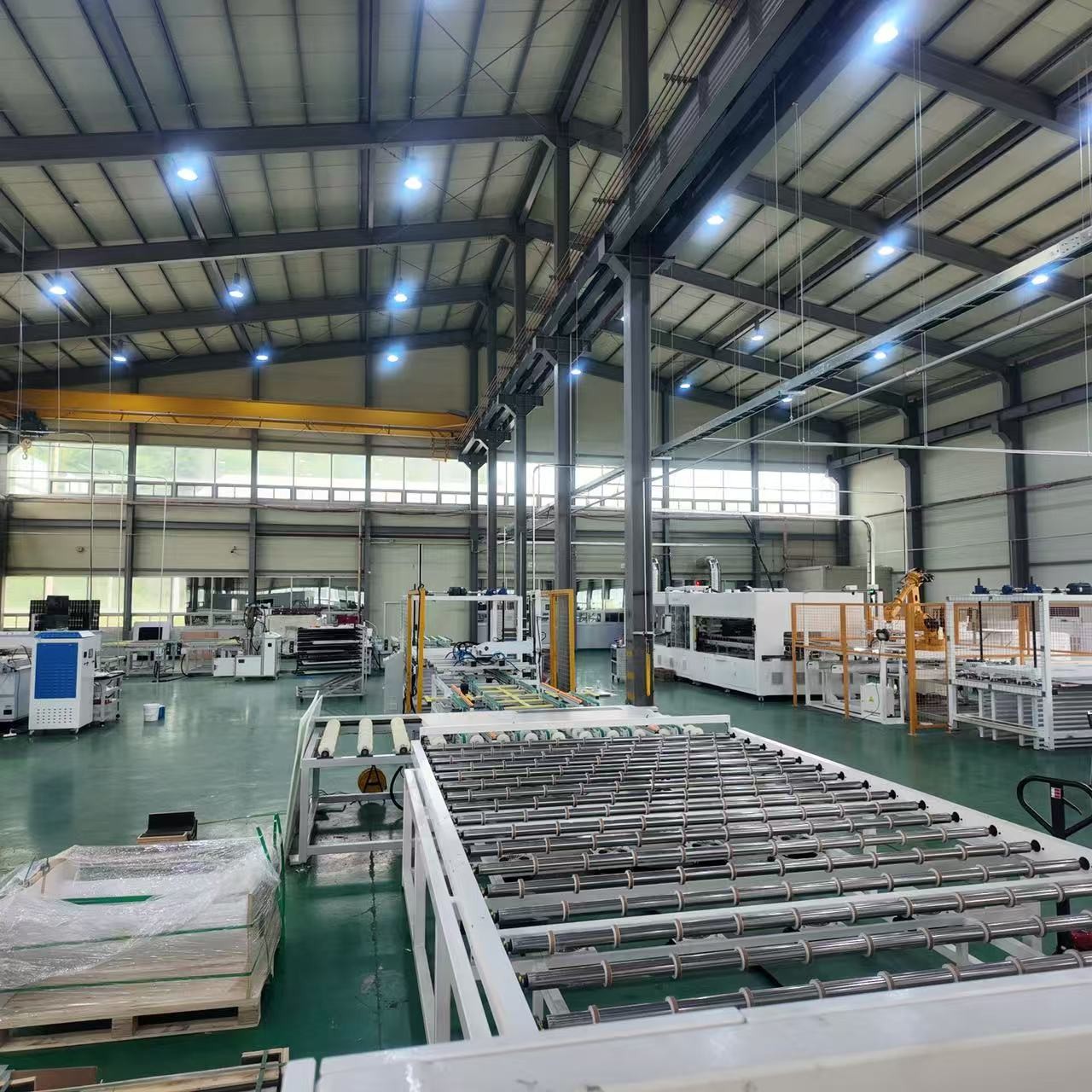

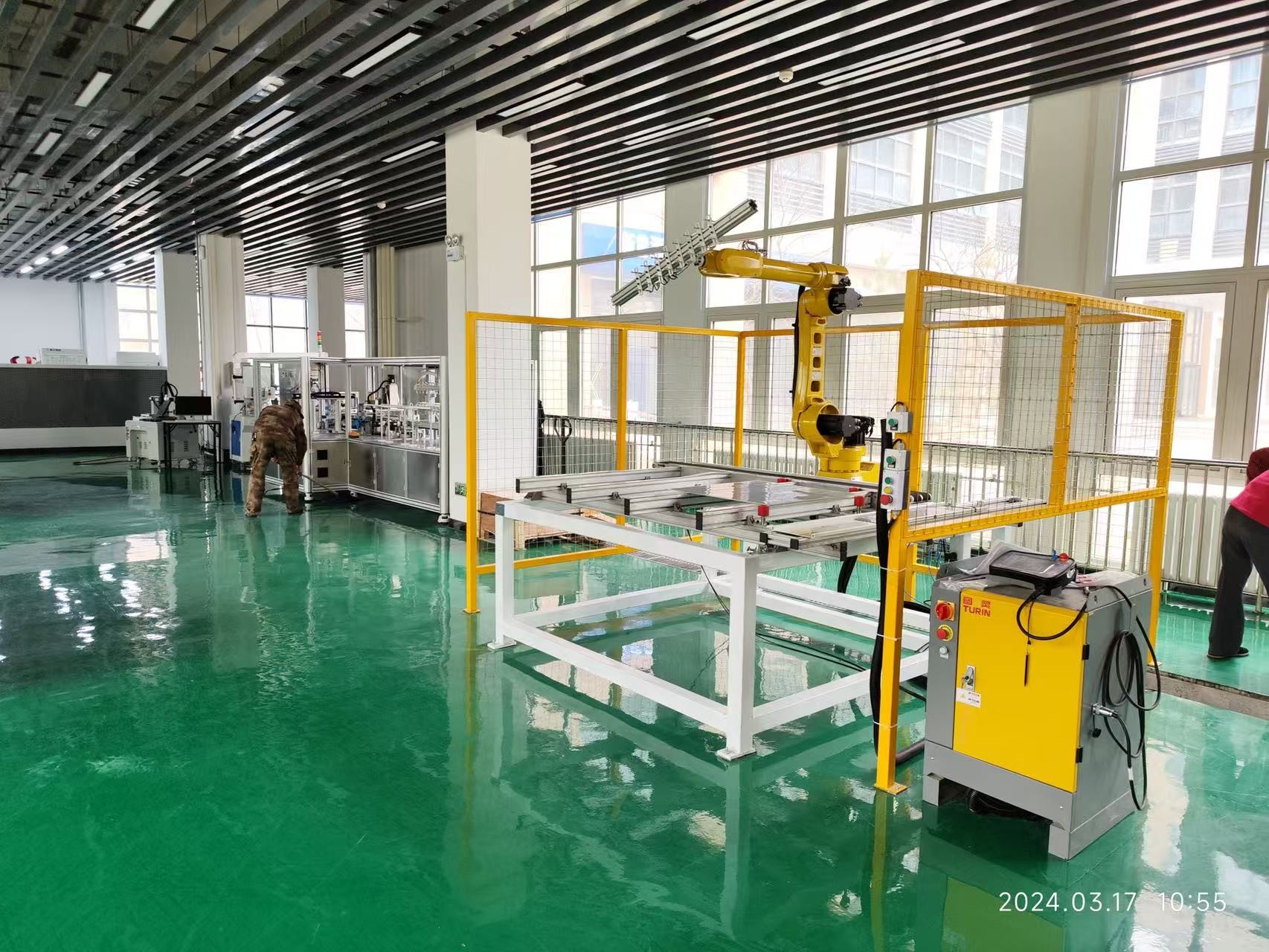

Solar Module Assembly Line

Solar module assembly line is mainly used to make solar modules, and it can be adjusted according to the demand of the market. All the machines can also be customerized.

If you want to know more about our products, please feel free to contact us.

50MW Solar Panel Production Line is best optional beginner with fully automated and acceptable by majority of customer.

It provides a higher throughput supported by more automatic machines and keeps most of its machines but it can do more based on 3 work shifts of 8 hours. Witha compact and flexible setup, it can fit any factory.

Designed feature for 50MW:

-compatible with whole cell&half cutting solar cell production.

-With cell laser cutting unit for half-cut cells.

-Production fully compatible with bigger solar cells: M6 (166mm), M10 (182mm), M12 (210mm) in full, half and third cut(with different Jigs)

-Works with 9,10,11,12 bus bar and wires.

-Flexible with automatic bussing or manual bussing.

-Works with solar panel dimension up to 2400*1400mm.

-Power of single solar panel can reach 600w+.

Reference lay out drawing for 50mw Solar Panel Production Line

Main machine list

Auto glass loader*1set                1^st Eva cutting&laying machine*1set

Auto solar stringer*set                Auto layup machine*1set

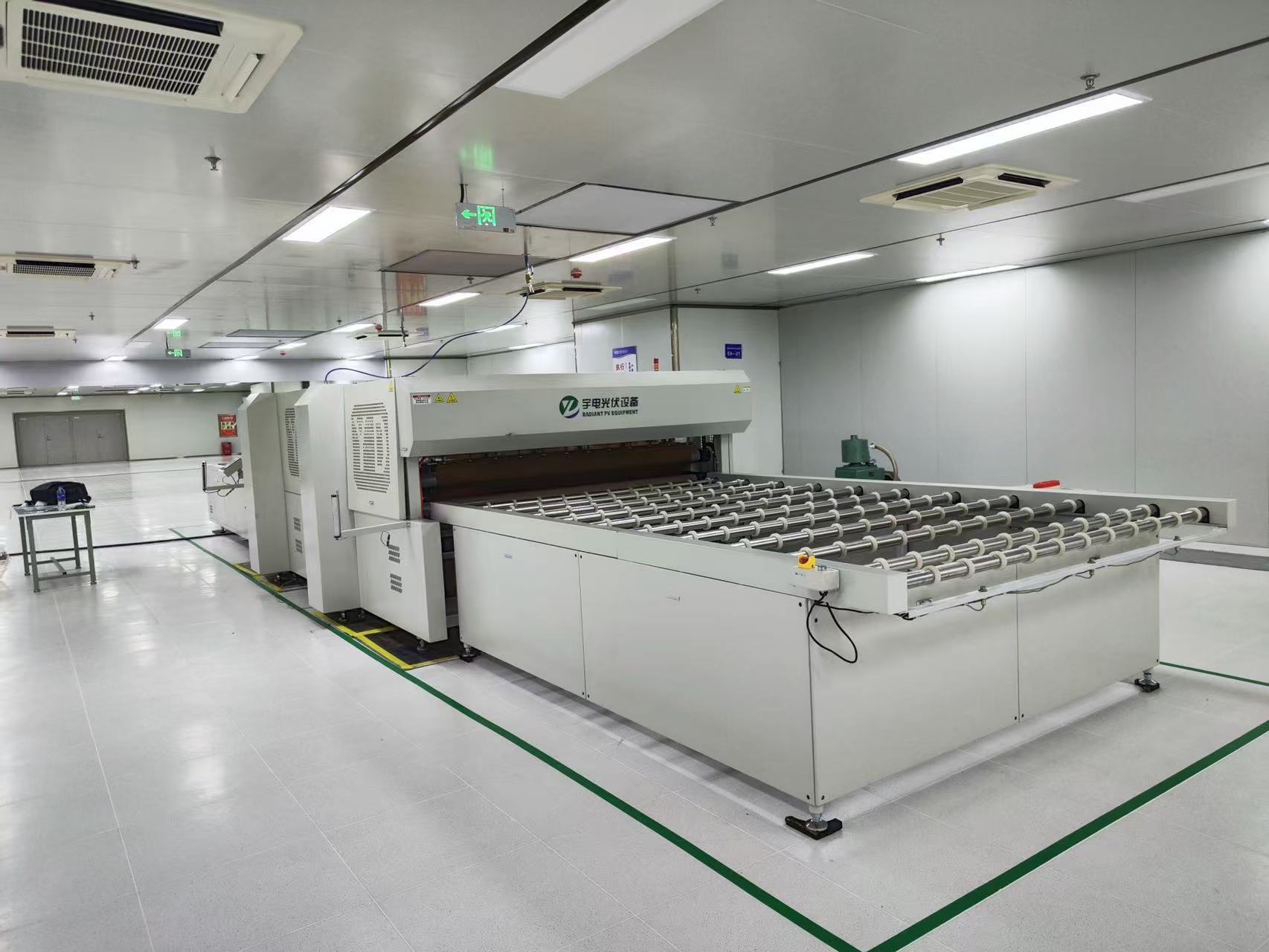

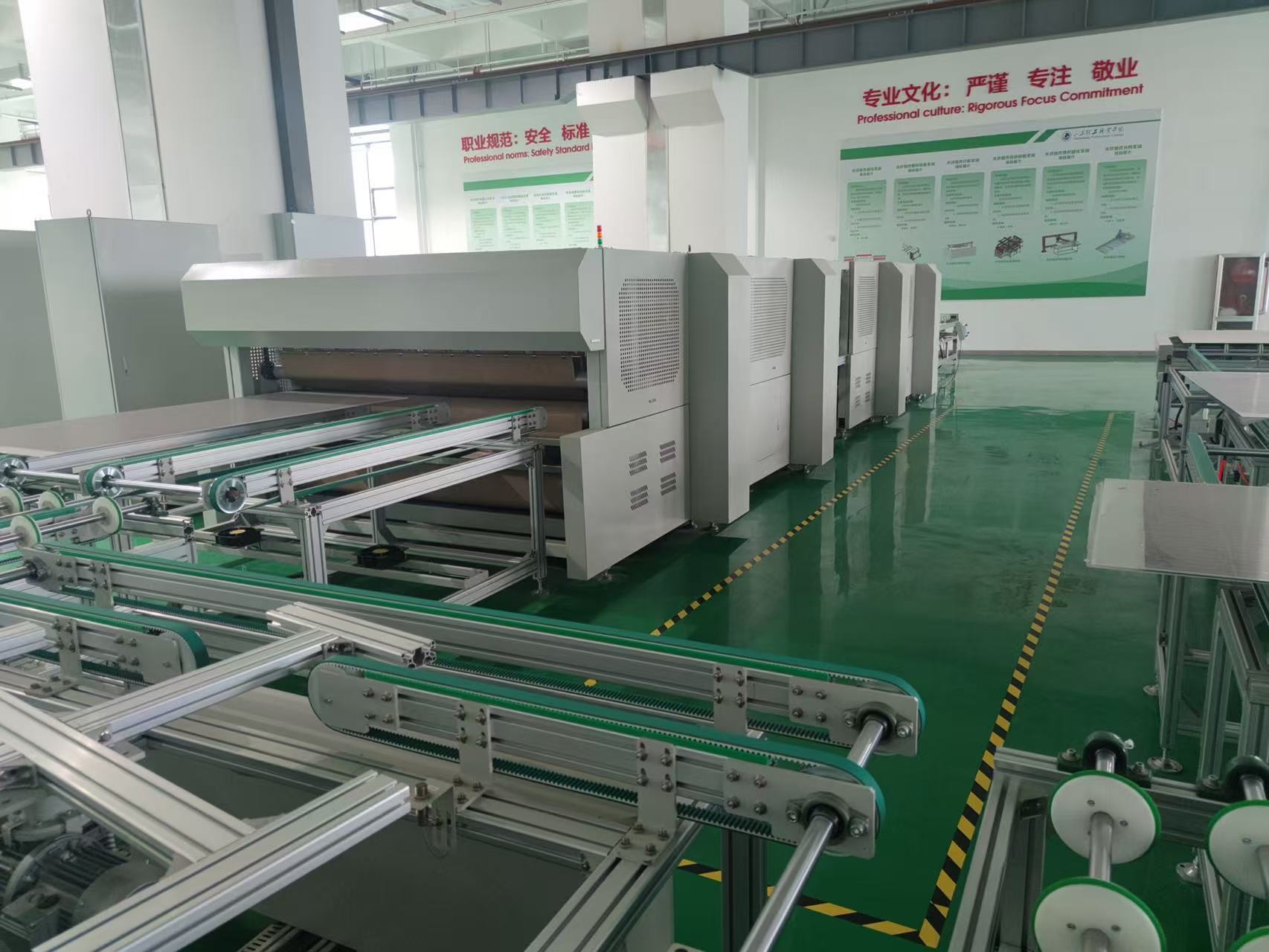

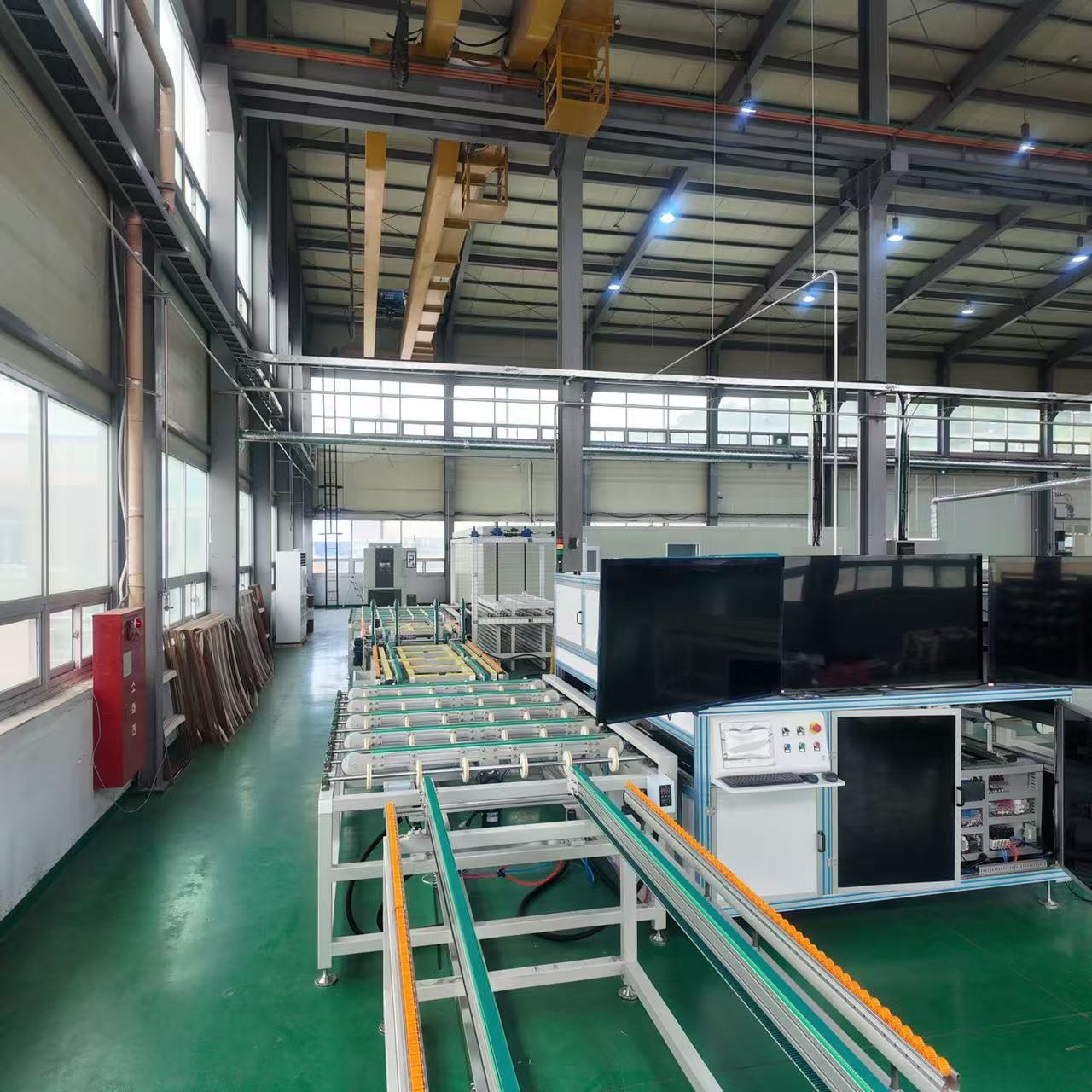

Online EL*VI tester*1set              Auto Solar Panel laminator*1set

Auto trimming machine*1set        Flipped tester*1set

Auto framing machine*1set          J-box gluing machine*1set

J-box potting machine*1set          Auto frame gluing machine*1set

Curving line&manipulators*1set    180°Rotation*2sets

Iv tester*1set                            Hi-pot tester*1set

EL after lamination*1set              Auto sorter*1set

Company information

As a leading manufacturer of turnkey line solutions for PV intelligent equipment, Radiant is specializing in the R&D, design,production,sales and related services of high-tech automation complete sets of equipment.

High performance and best stability for all equipment,Free factory lay out,Machine installation,commissioning&training

Radiant always adheres to its advanced production technology, improved technological process, excellent product quality, comprehensive after-sales service to continuously provide customers with innovative, efficient and specialized solutions, and has won good reputation and wide recognition in the industry and global market.
