150MW Solar Panel Production Line

Description:150MW Solar Panel Production Line
Annual capacity:150MW
Capacity: 12pcs of 550W/Hour with 182mm
Peak Power: 150Kw Rated Power:80Kw
Compressed air:0.6-0.8Mpa



150MW Solar pv module line is best optional beginner with fully automated and acceptable by majority of customer.

It provides a higher throughput supported by more automatic machines and keeps most of its machines but it can do more based on 3 work shifts of 8 hours. Witha compact and flexible setup, it can fit any factory.

Designed feature for 150MW:

-compatible with whole cell&half cutting solar cell production.

-With cell laser cutting unit for half-cut cells.

-Production fully compatible with bigger solar cells: M6 (166mm), M10 (182mm), M12 (210mm) in full, half and third cut(with different Jigs)

-Works with 9,10,11,12 bus bar and wires.

-Flexible with automatic bussing or manual bussing.

-Works with solar panel dimension up to 2400*1400mm.

-Power of single solar panel can reach 600w+.

Main machine list

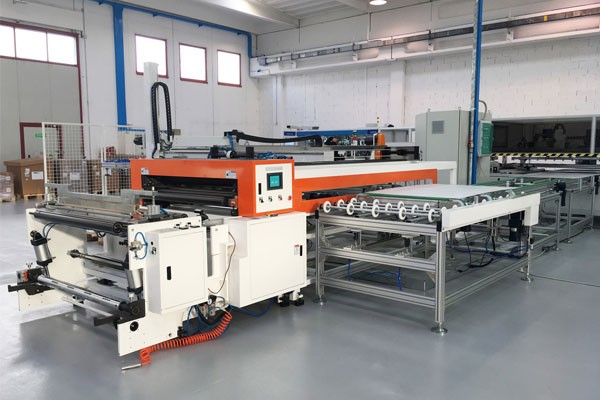

Auto glass loader*1set                 1st Eva cutting&laying machine*1set

Auto solar stringer*set                  Auto layup machine*1set

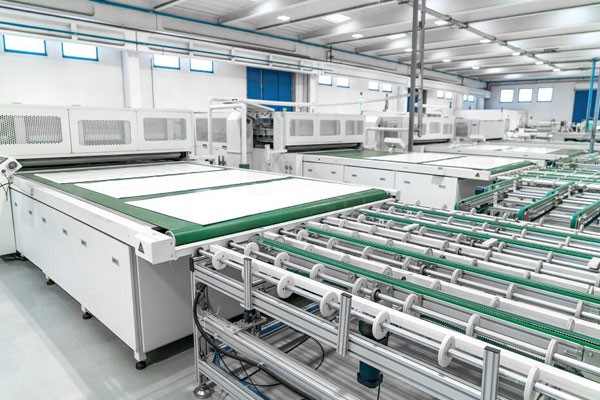

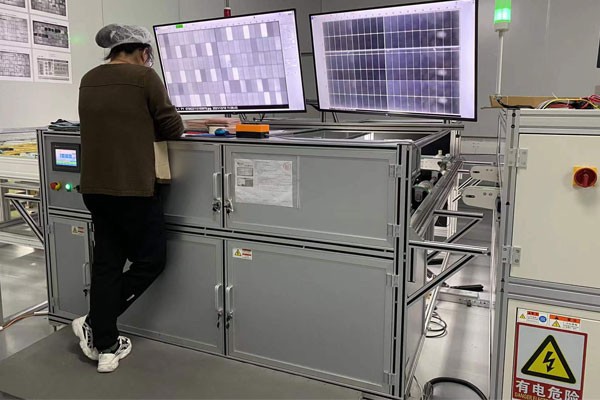

Online EL*VI tester*1set              Auto Solar Panel Laminator*1set

Auto trimming machine*1set        Flipped tester*1set

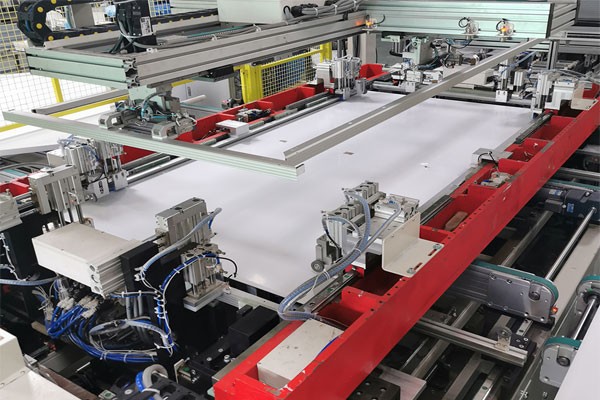

Auto framing machine*1set          J-box gluing machine*1set

J-box potting machine*1set           Auto frame gluing machine*1set

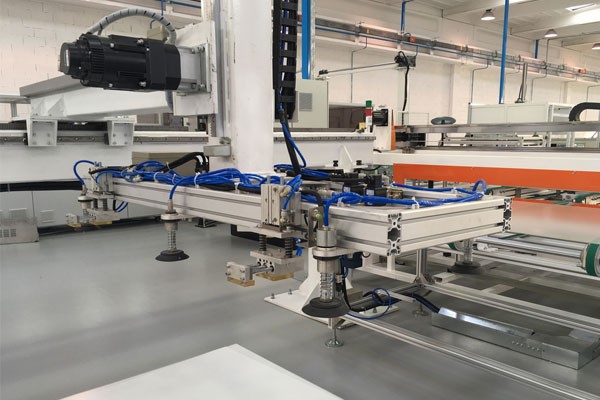

Curving line&manipulators*1set    180°Rotation*2sets

Iv tester*1set                                 Hi-pot tester*1set

EL after lamination*1set                Auto sorter*1set

Company information


As a leading manufacturer of turnkey line solutions for PV intelligent equipment, Radiant is specializing in the R&D, design,production,sales and related services of high-tech automation complete sets of equipment.


High performance and best stability for all equipment,Free factory lay out,Machine installation,commissioning&training


Radiant always adheres to its advanced production technology, improved technological process, excellent product quality, comprehensive after-sales service to continuously provide customers with innovative, efficient and specialized solutions, and has won good reputation and wide recognition in the industry and global market.
