Description:200MW Solar Panel Production Line
Annual capacity:200MW
Capacity: 24pcs of 550W/Hour with 182mm
Peak Power: 150Kw Rated Power:80Kw
Compressed air:0.6-0.8Mpa

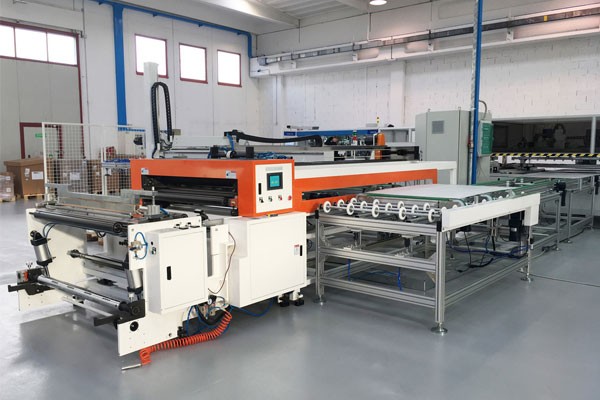

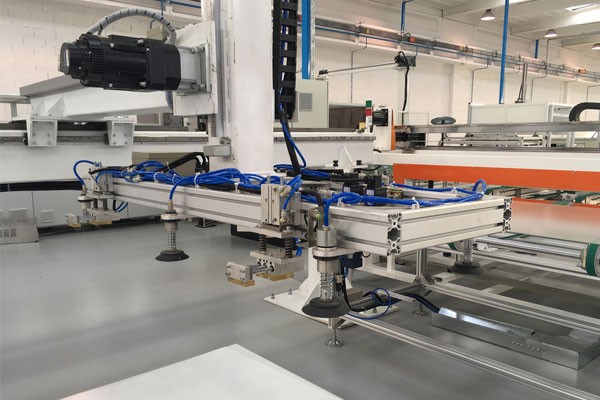

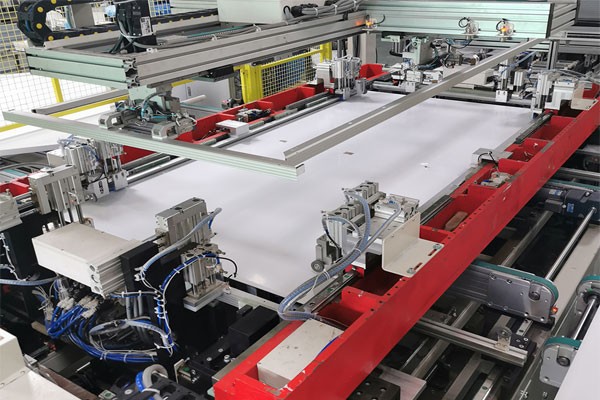

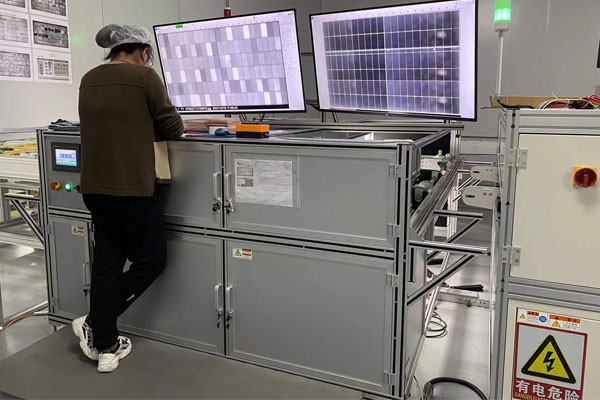

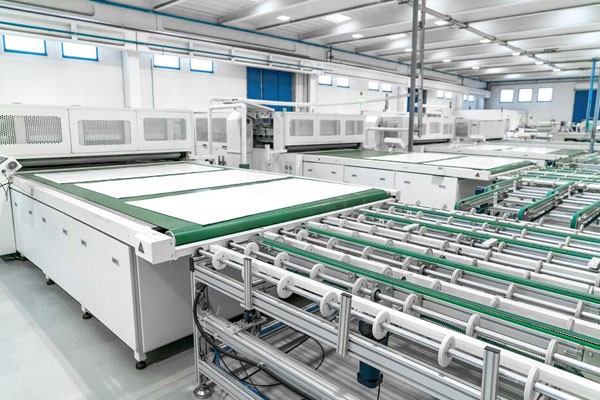

200MW Solar Panel Production Line comes with 95% automatic machinery and least labour cost including auto glass loading machine,1st eva cutting&laying machine,auto stringer,auto layup,auto bussing,auto taping,auto solar laminator,auto trimming,auto framing&gluing system,auto curving line,auto IV tester,auto EL&VI tester,auto sorting machine.
It provides a higher throughput supported by more automatic machines and keeps most of its machines but it can do more based on 3 work shifts of 8 hours. Witha compact and flexible setup, it can fit most of factory.
Designed feature for 200MW:
-compatible with whole cell&half cutting solar cell production.
-With cell laser cutting unit for half-cut cells.
-Production fully compatible with bigger solar cells: M6 (166mm), M10 (182mm), M12 (210mm) in full, half and third cut(with different Jigs)
-Works with 9,10,11,12 bus bar and wires.
-Flexible with automatic bussing or manual bussing.
-Works with solar panel dimension up to 2400*1400mm.
-Power of single solar panel can reach 600w+.
Reference lay out drawing for 150mw solar pv module line
As a leading manufacturer of turnkey line solutions for PV intelligent equipment, Radiant is specializing in the R&D, design,production,sales and related services of high-tech automation complete sets of equipment.
High performance and best stability for all equipment,Free factory lay out,Machine installation,commissioning&training
Radiant always adheres to its advanced production technology, improved technological process, excellent product quality, comprehensive after-sales service to continuously provide customers with innovative, efficient and specialized solutions, and has won good reputation and wide recognition in the industry and global market.
