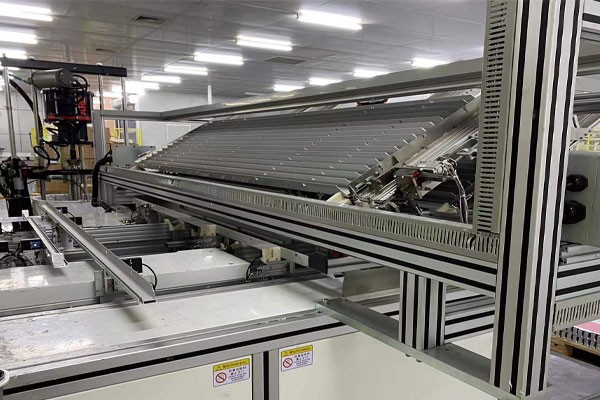

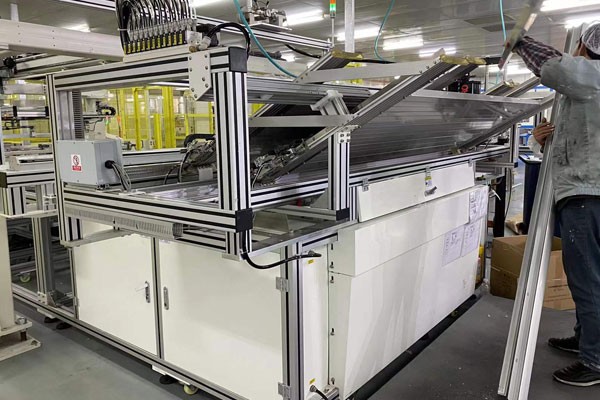

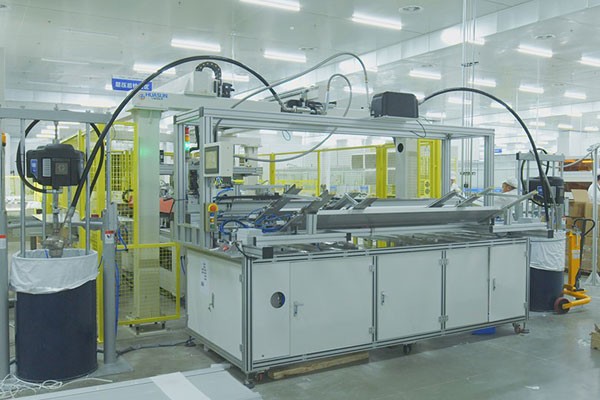

Frame Gluing Machine|Radiant Pv Solar

Description:Solar frame gluing
Annual capcity:100-300MW/Year
Maximum effective stroke:2600mm
Shortest frame size:900mm
Applicable module size:1640-2600*992-1500mm



EMAIL

Application Field

It is used for solar frame gluing automatically,meanwhile it can be upgraded to connect with auto framing and picking system.


Frame Gluing Machine|Radiant Pv Solar

1.Applicable module size:1640-2600*992-1500mm;

2.Pump dimensions:991mmX610mmX1895mm;

3.Maximum effective stroke:2600mm;

4.Colloid size:0-6mm Adjustable;

5.Deviation:±2 %;

6.Repeatability:±0.1mm;

7.Supply control mode:Closed-loop control, according to the outlet pressure or glue flow rate to adjust the glue pressure in real time to ensure the uniformity of the glue;

8.Measurement method:PF2000 electronic control precise measurement, real-time display on each side of the touch screen glue out time and the plastic volume;

9.Pressure monitoring:Real-time monitoring of PF2000 inlet and outlet pressures, real-time display monitoring on the touch screen;

10.Glue adjustment:Electronic control, directly input value, can adjust the glue pressure or flow size to control the amount of glue;

11.Glue adjustment:Electronic control, directly input value, can adjust the glue pressure or flow size to control the amount of glue;

12.Pressure alarm:With high or low pressure alarm, upper and lower pressure can be set by touch screen;

13.The longest frame size:2600*1500mm;

14.Shortest frame size:800mm;
