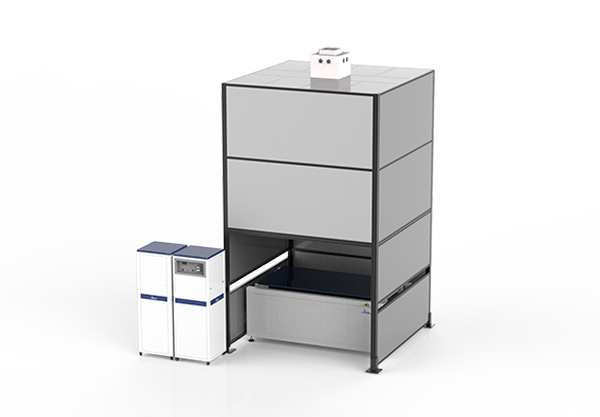

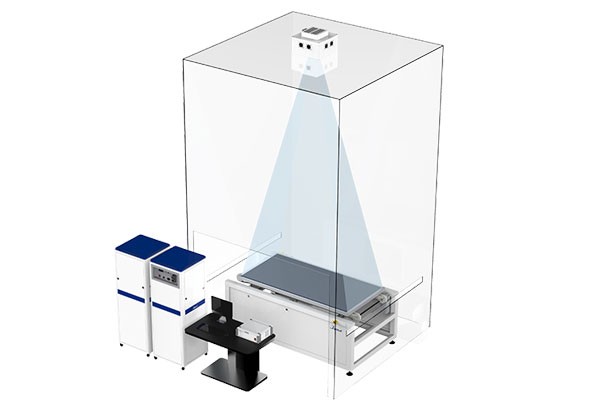

A+A+A+ Solar Simulator

Description:mono crystalline, poly crystalline, PERC, HJT. N type. IBC……. High efficiency and high capacitance solar modules testing
Solar module type:2400*1400mm

EMAIL

Application Field

Electric performance test and selection for solar Mono-crystalline silicone solar module and Poly-crystalline silicone solar module.

Especially designed for high Efficiency solar module IV Testing, such as PERC, HJT, N type, IBC, TopCon …… all high efficiency and high capacitance solar module testing with high transparency EVA

Capable of full cell, cut-cell, shingled, MBB, LRF ribbon, Glass-Backsheet, Glass-  Glass with or without frame, Bi-Facial …… all technologies module accurate testing Effective Testing area up to 2600*1600mm (156, 158, 166, 182, and 210mm cell modules testing)

Pulsed Duration ranges 10-100ms, in step of 10ms

Light Irradiance ranges 200W/m2 - 1200W/m2, in step of 100W/m2.

A+A+A+ Class as per IEC IEC 60904-9: 2020

PERC module , using 30-50ms pulse duration, Gsola guarantee lamp lifetime150000 flashes





Model

GIV-20A2616

GIV-20ATS

GIV-20AS

Max Illumination Area

2600X1600mm

2400X1400mm

2200X1200mm

Light Irradiance

700-1200W/

700-1200W/

700-1200W/

Spectrum Mis-match

0.875-1.125, A+

0.875-1.125, A+

0.875-1.125, A+

Spectrum Range

300-1200nm

300-1200nm

300-1200nm

Instability of Irradiance

0.5%, A+

0.5% , A+

0.5%, A

Non-Uniformity of Irradiance

1% , A+

<1% , A+

<2% , A+

Measurement Range

Voltage0-1V/10V/50V/100V/200V Current 0-0.25A/1A/5A/10A/20A

Voltage0-1V/10V/50V/100V/200V Current 0-0.25A/1A/5A/10A/20A

Voltage0-1V/10V/50V/100V/200V Current 0-0.25A/1A/5A/10A/20A

Pulse Duration

10-100ms

10-100ms

10-100ms

Dimensions

2000X3000X5500mm

2000X3000X5500mm

2000X3000X5500mm

Electricity

AC220-240V,10A,50/60 HZ

AC220-240V,10A,50/60 HZ

AC220-240V,10A,50/60 HZ

Feature

1.Capable of mono crystalline,poly crystalline,PERC,HJT,N type,IBC…… all high efficiency and high capacitance solar module using high transparency EVA.

2.Capable of full cell,cut-cell,shingled,MBB,LRF ribbon,Glass-Backsheet,Glass- Glass with or without frame,Bi-Facial…… all technologies module testing.

3.Effective Testing area up to 2600*1600mm (156,158,166,182,and 210mm cell modules testing).
