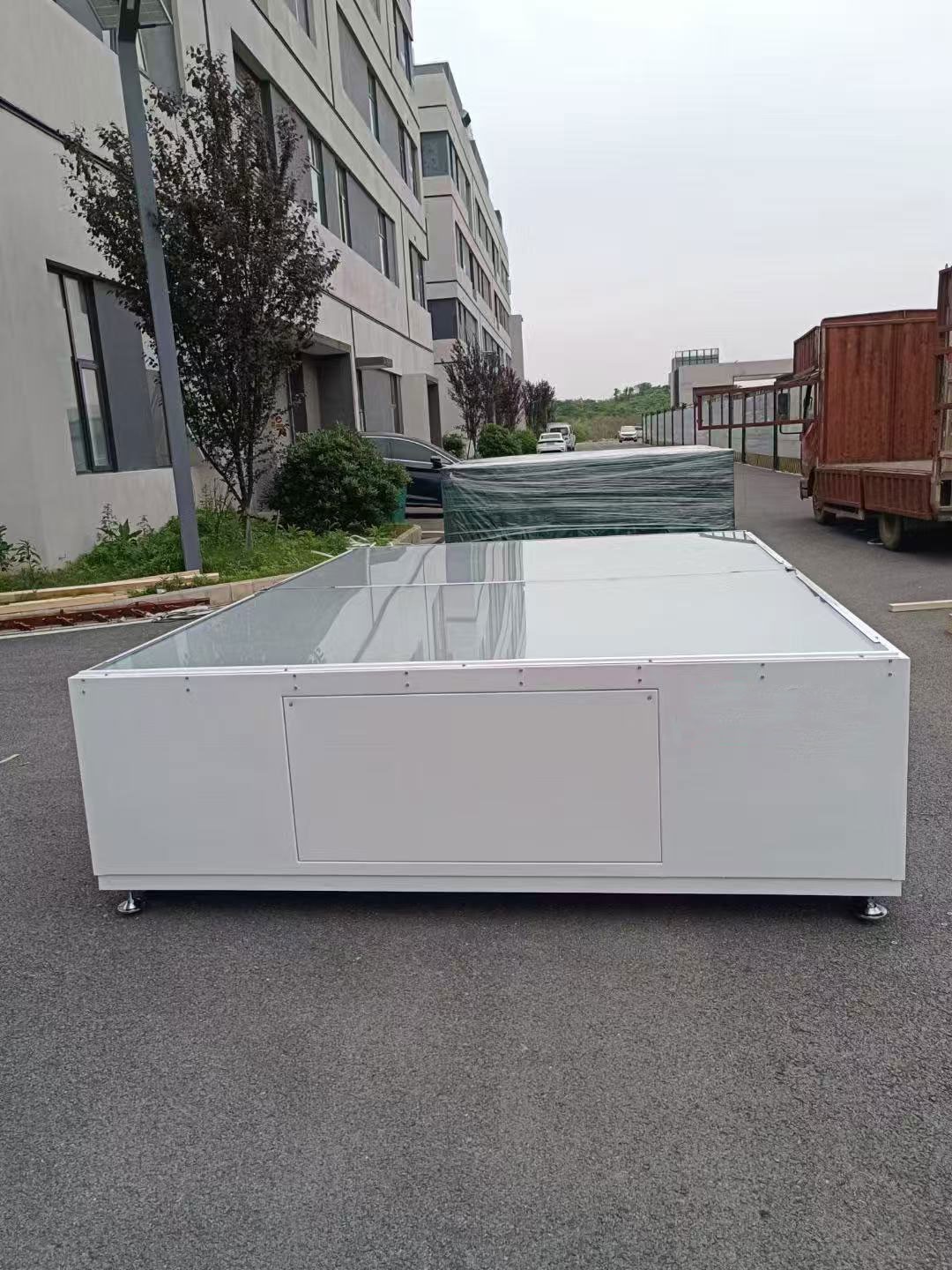

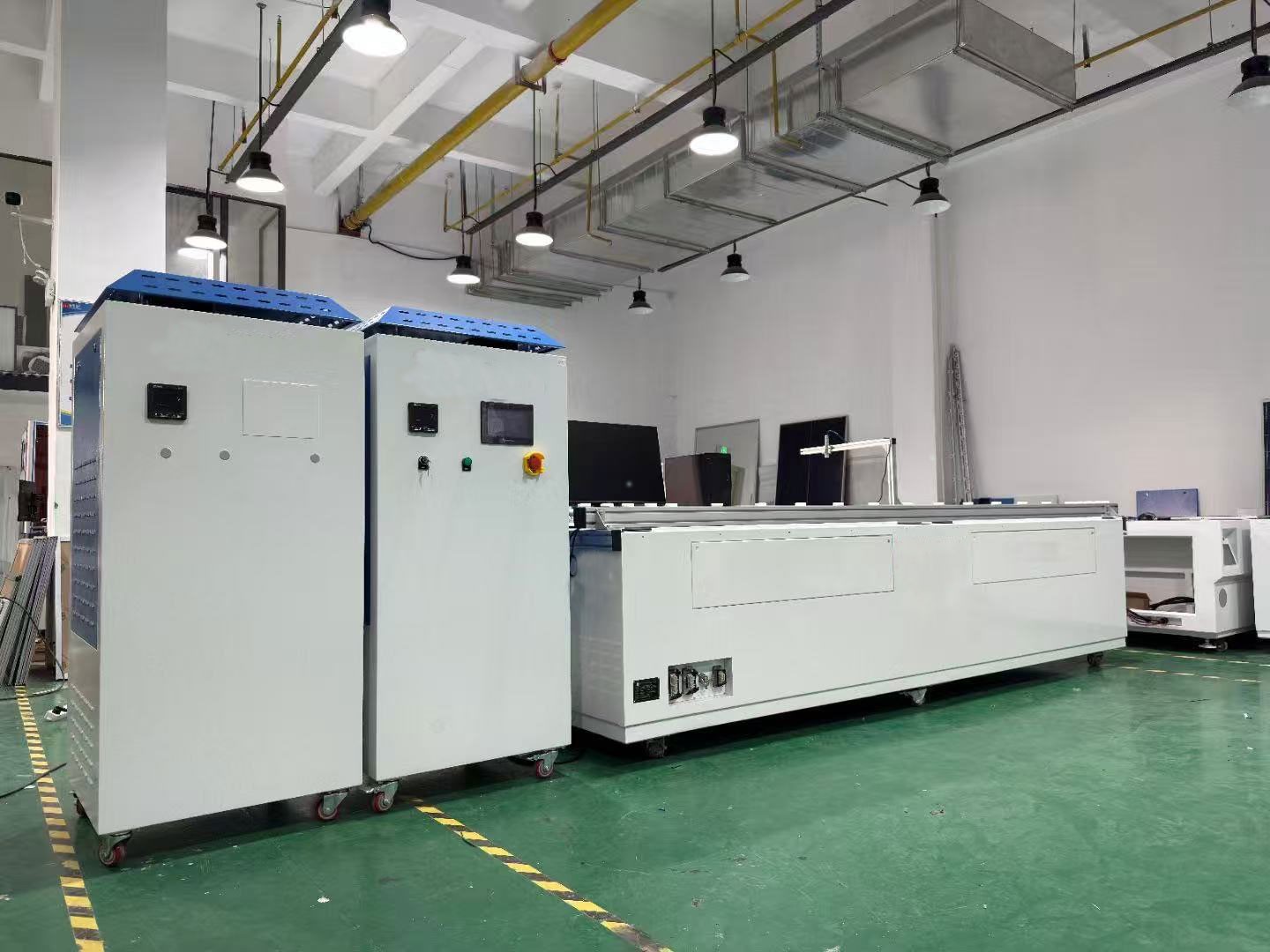

BIPV IV Tester

Spectral

Meet IEC60904-9 requirement

Sun Simulator

High-power Pulsed Xenon Lamp

Single Pulse Time

0-100ms Adjustable

 Light Intensity

 100mW/Cm² (Adjustment Range 70~120mW/Cm²)

Uniformity of irradiation

≤±1% A

Irradiation instability

≤±1% A

Service Life of Xenon Lamp

200,000 Flashing times(Imported)

Direction of irradiation

Straight down

Effective Test Area

3200*2300mm

Effective Test Range

5W~650W

Test Voltage

0V~200V(Resolution 1mV)

Test Current

0-20A(Resolution ratio1mA)

Test Temperature

15℃~35℃(Resolution 0.1℃)

Test Repeatability Accuracy

≤±0.5% A

Electrical Performance Measurement Error

≤±1% A

Test Way

Four-line Test

Test Parameters

Isc,Voc, Pmax, Vm, Im, FF, EFF, Temp, Rs, Rsh

Single Testing Time

5 secs/pc

Temperature Test

Automatic Temperature Test

Temperature Compensation Display

Correct Test Temperature

Test Result

Test results voice number and voice prompt

Display testing time and graphical parameter

Test Report

Display current and record I-V curve

 Save all testing parameter from all solar module to hard disk

The specified file can be named autonomously

The Name of Specific Files Can Be Changed

Data collected and print

Aggregate data according to a set time period or at any time

Print with Excel (including I-V curve cumulative output)

Professional Software

Input coefficient of compensation

Date,Name,Number of rows and columns input

The sequence number start setting is automatically incremented

Parameter range setting of defective goods

Working Time

Running 24hours continuously

Power Supply

220V/50Hz/2kW
