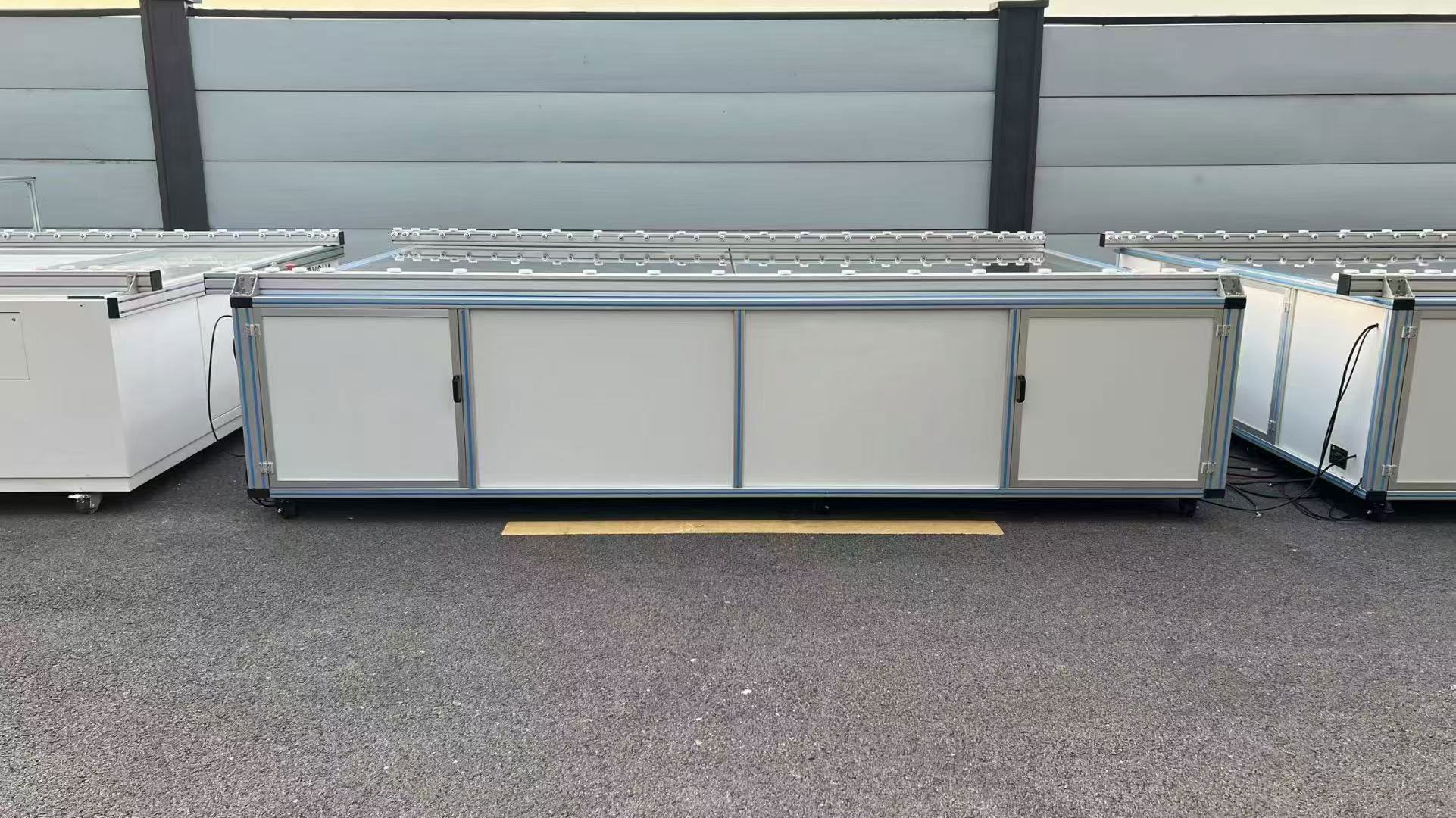

BIPV Electroluminescent Tester

Valid Testing Area

3200*2300mm

Resolution Ratio

6016X4000

Camera

Industrial CCD camera with Sony sensor

Testing Time

0s~60s continuous setting

Constant Power

Programmable power

Current Range

0 A ~ 10A continuously adjustable

Voltage Range

0 V ~ 60V continuously adjustable

Image Storing

Manual scanning bar code and save file,file name same as bar code

Manage Interface

English and Chinese interface,automatically controlling constant current on or off

Software Function

Enlarging image and show tiny trait,support marking flaw type in manual

Power supply

AC single phase 220V±10%

Frequency range

50Hz/60Hz ±10%

Running temperature

15-35degree
