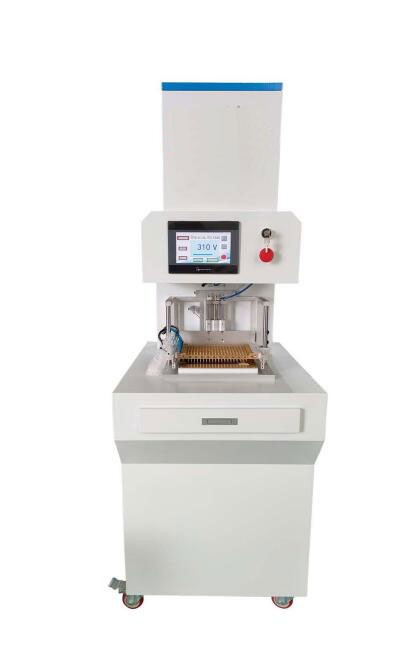

Solar Cell Testing Machine
Description:Electricity performance test and selection with single solar Mono-crystalline silicone cells and Poly-crystalline silicone cells.
Solar cell:156-210mm 2-12BB
Effective testing area:220*220mm
Application Field
Electric performance test and selection for solar Mono-crystalline silicone cells and Poly-crystalline silicone cells.
Equipment Feature
The equipment is specially designed for the filtration of solar mono-crystalline silicon and poly-crystalline silicon cells. Through the stimulated light irradiation by the solar spectrum lamp-house, the machine classifies the solar cells according to the testing and surveys result with related electrical parameter of solar cells.
Unique apparatus to input and modify the compensate parameters, to carry on automatically/manual adjustment to the light and temperature compensation, as well as automatically measurement and modification of the temperature.
Equipment Technical Parameters
Model | YDSCT-AAA |
Spectral | Meet IEC60904-9 requirement |
Sun Simulator | High-power Pulsed Xenon Lamp |
Light Intensity | 100mW/Cm2 (Adjustment Range 70~120mW/Cm2) |
Single Pulse Time | 0-60ms Adjustable |
Bus Bar | Up to 20BB |
Uniformity of irradiation | ≤±2% A |
Irradiation instability | ≤±1% A |
Service Life of Xenon Lamp | 200,000 Flashing times(Imported) |
Direction of irradiation | Straight down |
Effective Test Area | 220mm*220mm |
Effective Test Range | 0.1W~10W |
Test Voltage | 0V~1V(Resolution 1mV) |
Test Current | 0-10A(Resolution ratio1mA) |
Test Temperature | 15℃~35℃(Resolution 0.1℃) |
Test Repeatability Accuracy | ≤±0.5% A |
Electrical Performance Measurement Error | ≤±1% A |
Test Way | Four-line Test |
Test Parameters | Isc,Voc, Pmax, Vm, Im, FF, EFF, Temp, Rs, Rsh |
