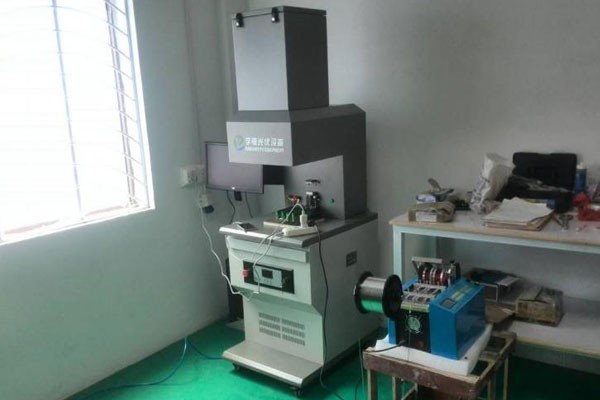

Solar Cell Tester|Radiant Pv Solar

Description:Electricity performance test and selection with single solar Mono-crystalline silicone cells and Poly-crystalline silicone cells.
Solar cell:156-210mm 2-12BB
Effective testing area:220*220mm

EMAIL

Application Field

Electric performance test and selection for solar Mono-crystalline silicone cells and Poly-crystalline silicone cells.

Parameter

Solar Cell Tester|Radiant Pv Solar

Irradiation intensity

100mW/cm2

IRRADIANCE range

70mW/cm2120mW/cm2

Uniformity of irradiation

≤±3%

Irradiation instability

≤±1%

Single pulsing time

10ms

Xenon lamp lifetime

300,000(German)

Direction of irradiation

Straight down

With remind function of flashing times(replacement Reset to zero)

Feature

The equipment is specially designed for the filtration of solar mono-crystalline silicon and poly-crystalline silicon cells. Through the stimulated light irradiation by the solar spectrum lamp-house, the machine classifies the solar cells according to the testing and surveys result with related electrical parameter of solar cells.



Unique apparatus to input and modify the compensate parameters, to carry on automatically/manual adjustment to the light and temperature compensation, as well as automatically measurement and modification of the temperature.



Based on the Windows operation interface and humanely designed testing software, it records data and displays test curve (I-V curve, P curve) and the test parameters (Voc, Isc, Pm, Im, FF, EFF). The test of sequence number is automatically produced and preserved to the assigned folder.
