Online Solar EL Tester|Radiant PV Solar

Description:check crack for solar panel by taking picture
Type:Offline without visual function
Camera:One or two
Solar panel type:1640*992mm-2400*1400mm

EMAIL


Application Field

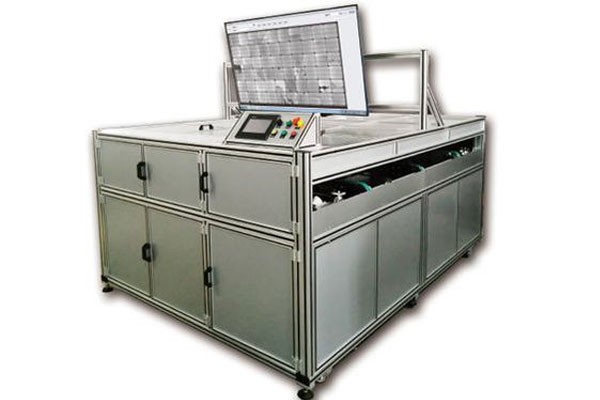

Online EL tester connects with fully automatic Solar Panel Production Line and test final solar panel after lamination.

Test solar panel quality by Radiant EL tester.

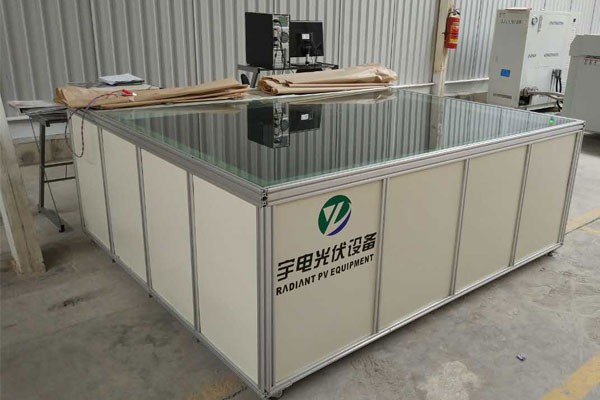

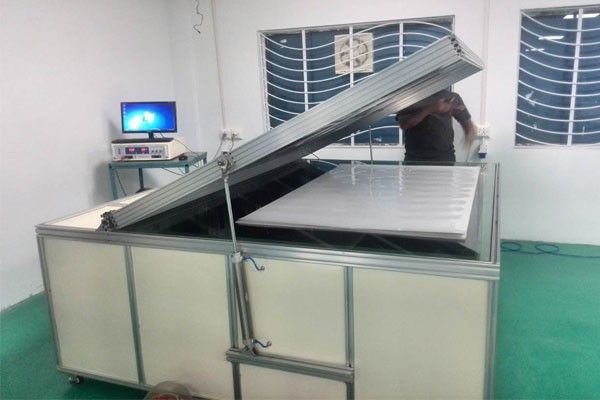

Cabinet(Aluminium Alloy profile,Aluminum-plastic plate)

Beautiful, generous and lightweight, easy to transport and place, the use of aluminum-plastic panels can better block the outside light from entering the dark box, which will affect the detection. In addition, the inner wall aluminum-plastic panel adopts reflective aluminum-plastic panel, which makes the camera camera effect better.

Shooting mode:Single/Two camera

Monitoring points:before/after lamination

Camera:Camera sensor supplier:Sony+Nikon

CCD target surface:Determine the corresponding target surface according to the pixel

Camera type:CCD cooling(inside+outside cooling)

Pixel:6016X4000(2400W)

Image acquisition time:1—60sadjustable

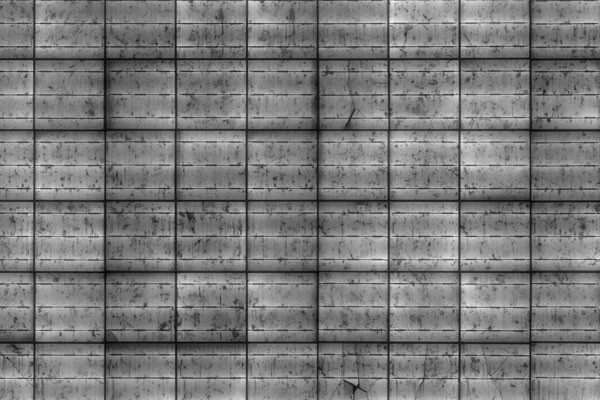

It can be detected that the width of cracks is less than 0.5MM

   Solder dark spot

    Crack spot

 Mixedcurrent grade

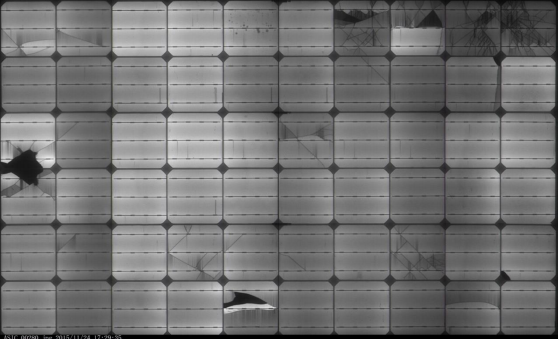

Solar cell defects

  Cold solder

     Polluted solar cell

OK

OK

OK

OK

OK

OK
